ESP8266 Ai-Thinker ESP-12 library for Eagle

Started working on a little ESP8266 project again. This time with an ESP-12 module from Ai-Thinker. For that I created a new part in Eagle after the specifications from Ai-Thinker (Technical Specifications).

My purchased module has a slightly different silkscreen as shown in the document. On my module GPIO4 and GPIO5 are swapped, and pin EN is labelled CH_PD. That should be checked before using the part.

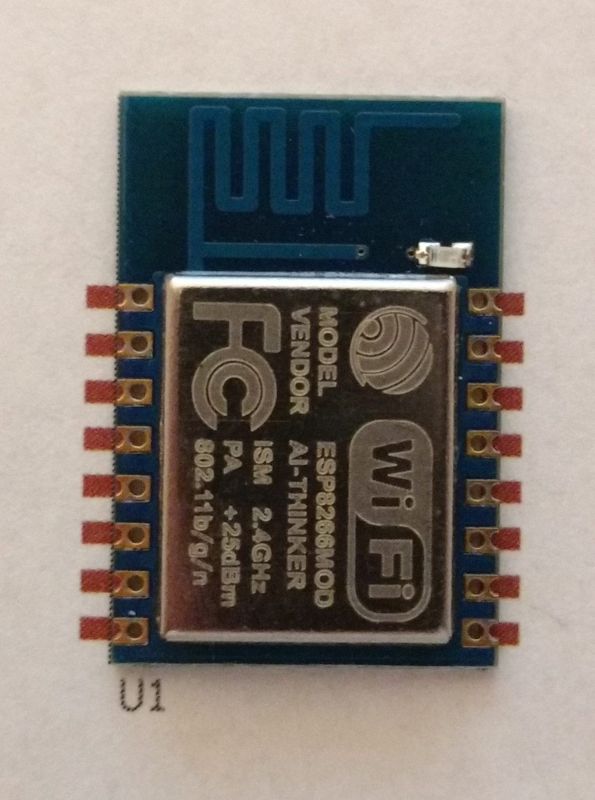

ESP8266 library - ESP fits

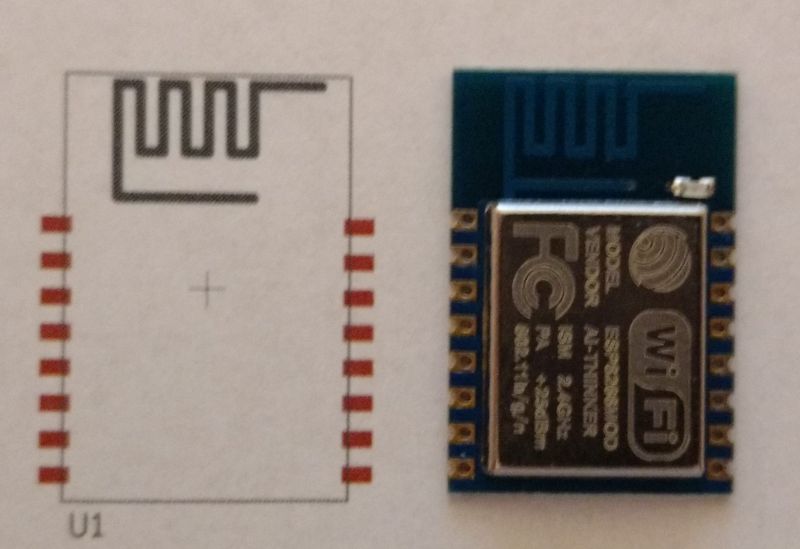

ESP8266 library - ESP side

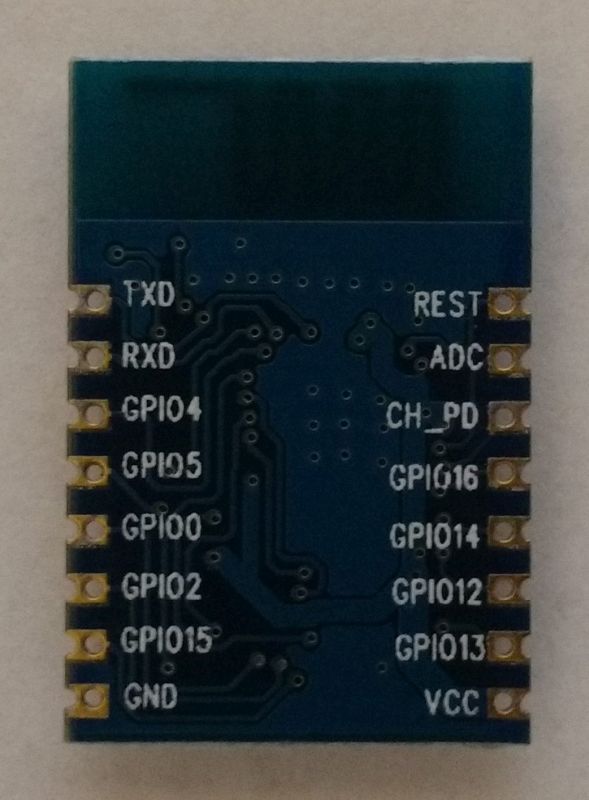

ESP8266 library - ESP pinout
